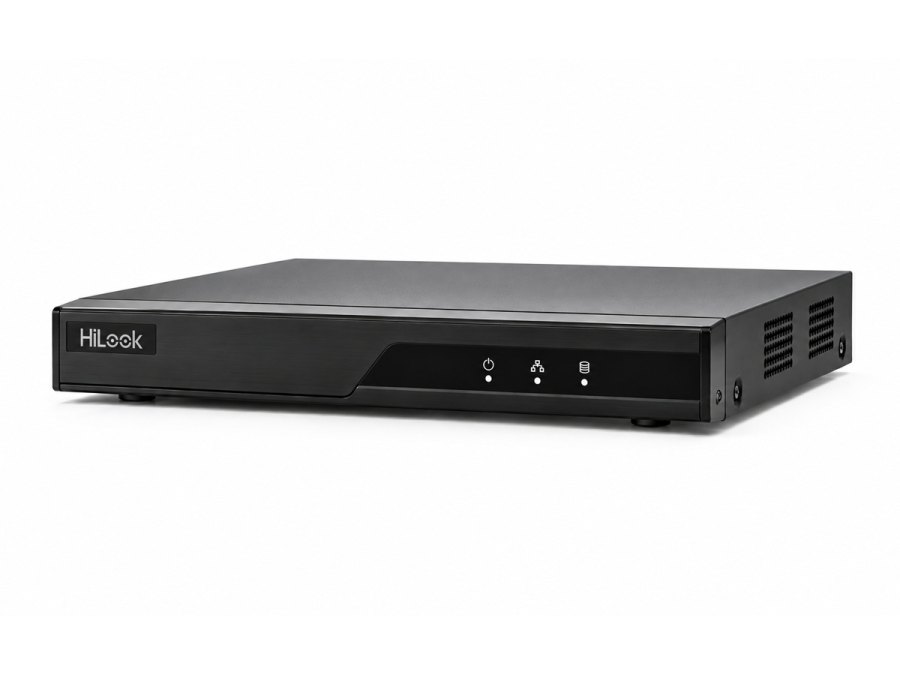

HiLook NVR-108MH-D/8P 8-Channel PoE Network Video Recorder
The HiLook NVR-108MH-D/8P is a compact 8-channel network video recorder designed for reliable IP camera surveillance in homes, shops, offices and small businesses. Featuring eight built-in Power over Ethernet (PoE) ports, the recorder simplifies CCTV installation by providing both power and network connectivity to compatible IP cameras through a single Ethernet cable.
Supporting up to eight IP cameras with resolutions up to 6 MP, the NVR delivers clear, detailed security recordings. It features H.265+ video compression to help reduce storage requirements and improve recording efficiency compared with traditional compression formats.
The NVR supports HDMI and VGA simultaneous display output at up to Full HD 1080p resolution. Its decoding capability supports up to four 1080p streams at 30 fps, making it suitable for everyday multi-camera surveillance.
One SATA interface supports a surveillance hard drive with a capacity of up to 6 TB, allowing flexible storage for continuous or scheduled recording.
Through HiLookVision, users can access compatible remote viewing and playback features when the NVR is connected to the network and correctly configured.
Product Specifications
| Brand | HiLook by Hikvision |
|---|---|
| Model | NVR-108MH-D/8P |
| Product Type | 8-Channel PoE Network Video Recorder |
| IP Camera Inputs | 8 Channels |
| Maximum Camera Resolution | 6 MP |
| Incoming Bandwidth | 60 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Built-in PoE Ports | 8 x RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Power Budget | Up to 75 W |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability | 4 x 1080p / 2 x 4 MP / 1 x 6 MP at 30 fps |
| Synchronous Playback | 4 Channels |
| HDMI Output | Up to 1920 x 1080 at 60 Hz |
| VGA Output | Up to 1920 x 1080 at 60 Hz |
| Display Mode | Simultaneous HDMI and VGA |
| Storage Interface | 1 SATA |
| Maximum HDD Capacity | 6 TB |
| Network Interface | 1 x RJ45 10/100 Mbps Ethernet |
| USB Ports | 2 x USB 2.0 (Rear) |
| Alarm Inputs / Outputs | None |
| Remote Access | HiLookVision |
| Power Supply | 48 V DC, 1.8 A |
| Power Consumption | Up to 10 W, Excluding HDD and PoE |
| Dimensions (W x D x H) | 265 x 225 x 48 mm |
| Weight | Up to 1 kg Without HDD |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10% to 90% |
| Housing | Mini 1U |
| Colour | Black |
Key Features
- 8-channel IP network video recorder
- 8 built-in PoE ports for compatible IP cameras
- Up to 75 W total PoE power budget
- Supports IP camera resolutions up to 6 MP
- H.265+ efficient video compression
- 60 Mbps incoming and outgoing bandwidth
- Simultaneous Full HD HDMI and VGA outputs
- Up to 4-channel 1080p decoding at 30 fps
- 4-channel synchronous playback
- Single SATA interface supporting up to 6 TB
- HiLookVision remote access
- Compact Mini 1U housing
Applications
Suitable for residential CCTV installations, retail shops, offices, restaurants, reception areas, small warehouses, workshops and other premises requiring an affordable eight-camera IP surveillance system.
Compatibility Information
The HiLook NVR-108MH-D/8P is designed for compatible IP network cameras and does not include analogue BNC camera inputs.
Its eight PoE ports support IEEE 802.3af/at. The combined power requirements of connected cameras must remain within the 75 W total PoE power budget.
The NVR supports camera recording up to 6 MP, but HDMI and VGA display output is limited to 1080p. Actual recording and decoding performance depends on camera configuration, resolution, frame rate and bitrate.
A compatible surveillance hard drive may be sold separately.
