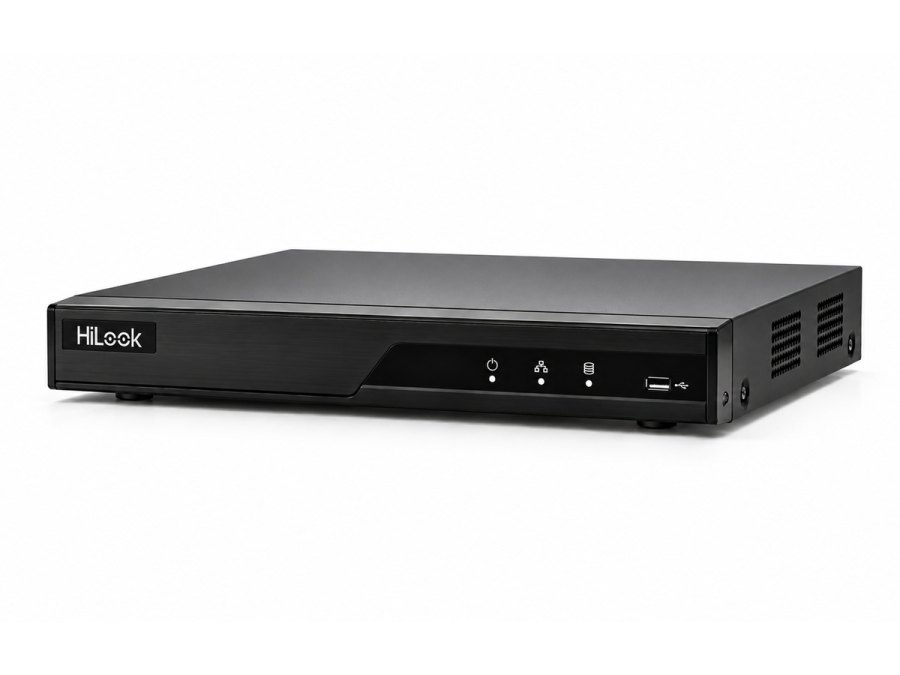

HiLook NVR-104MH-D/4P 4-Channel PoE Network Video Recorder
The HiLook NVR-104MH-D/4P is a compact four-channel network video recorder designed for dependable IP camera surveillance in homes, offices, shops and small businesses. With four built-in Power over Ethernet (PoE) ports, the NVR provides power and network connectivity to compatible IP cameras through a single Ethernet cable.
Supporting up to four IP cameras at resolutions up to 6 MP, the recorder delivers detailed security footage. Advanced H.265+ video compression helps reduce bandwidth and storage requirements while maintaining effective video recording.
The NVR features simultaneous HDMI and VGA display outputs at up to Full HD 1080p resolution. It supports four-channel synchronous playback and decoding of up to four 1080p camera streams at 30 frames per second.
A single SATA interface supports a compatible surveillance hard drive with a capacity of up to 6 TB, making the recorder suitable for continuous and scheduled CCTV recording.
Through HiLookVision, users can access live camera feeds and recorded footage remotely when the device is connected to the network and correctly configured.
Product Specifications
| Brand | HiLook by Hikvision |
|---|---|
| Model | NVR-104MH-D/4P |
| Product Type | 4-Channel PoE Network Video Recorder |
| IP Camera Inputs | 4 Channels |
| Maximum Camera Resolution | 6 MP |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Built-in PoE Ports | 4 x RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Power Budget | 36 W |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability | 4 x 1080p / 2 x 4 MP / 1 x 6 MP at 30 fps |
| Synchronous Playback | 4 Channels |
| HDMI Output | Up to 1920 x 1080 at 60 Hz |
| VGA Output | Up to 1920 x 1080 at 60 Hz |
| Display Mode | Simultaneous HDMI and VGA |
| Storage Interface | 1 SATA |
| Maximum HDD Capacity | 6 TB |
| Network Interface | 1 x RJ45 10/100 Mbps Ethernet |
| USB Ports | 2 x USB 2.0 (Rear) |
| Alarm Inputs / Outputs | None |
| Remote Access | HiLookVision |
| Power Supply | 48 V DC, 1 A |
| Power Consumption | Up to 10 W, Excluding HDD and PoE |
| Dimensions (W x D x H) | 265 x 225 x 48 mm |
| Weight | Up to 1 kg Without HDD |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10% to 90% |
| Housing | Mini 1U |
| Colour | Black |
Key Features
- 4-channel IP network video recorder
- 4 built-in PoE ports for compatible IP cameras
- 36 W total PoE power budget
- Supports IP camera recording up to 6 MP
- H.265+ efficient video compression
- 40 Mbps incoming and 60 Mbps outgoing bandwidth
- Simultaneous Full HD HDMI and VGA output
- Four-channel synchronous playback
- One SATA interface supporting up to 6 TB
- HiLookVision remote viewing and playback
- Compact Mini 1U design
Applications
Ideal for residential CCTV systems, apartments, retail shops, offices, restaurants, reception areas, workshops and small commercial premises requiring an affordable four-camera IP surveillance solution.
Compatibility Information
The NVR-104MH-D/4P is designed for compatible IP network cameras and does not include analogue BNC camera inputs.
Its four integrated PoE ports support IEEE 802.3af/at. The total power consumption of connected PoE cameras must remain within the recorder's 36 W PoE budget.
The recorder supports camera resolutions up to 6 MP, while HDMI and VGA display output is limited to Full HD 1080p. Recording and decoding performance depend on the connected cameras, frame rates and video bitrates.
A compatible surveillance hard drive may be sold separately.
