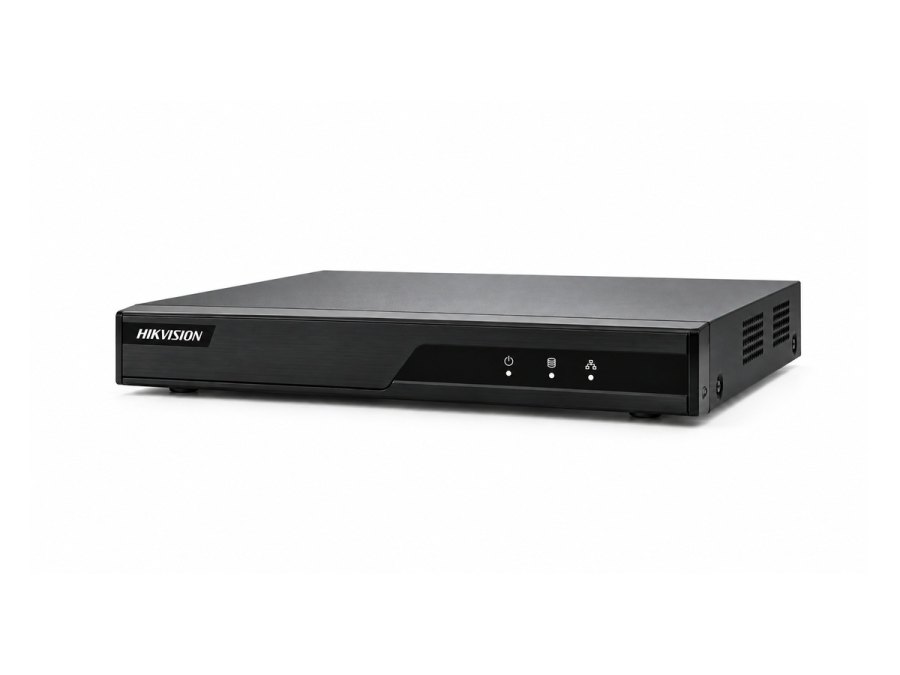

Hikvision iDS-7216HUHI-M2/XT 16-Channel AcuSense DVR
The Hikvision iDS-7216HUHI-M2/XT is a high-performance 16-channel AcuSense Turbo HD digital video recorder designed for advanced CCTV surveillance in residential, commercial and industrial environments.
Featuring Hikvision AcuSense technology, the recorder uses intelligent human and vehicle classification to help reduce unnecessary motion alerts and make security footage easier to search. It supports Motion Detection 2.0, intelligent perimeter protection and facial recognition functions, subject to operating mode and channel limitations.
The DVR supports HDTVI, AHD, CVI, CVBS and compatible IP cameras, offering flexibility for new CCTV installations and upgrades to existing coaxial surveillance systems. High-resolution recording is supported up to 8 MP, with frame rates depending on the selected recording resolution.
With H.265 Pro+ video compression, the recorder helps optimise storage efficiency. Two SATA hard-drive interfaces support up to 12 TB per drive, providing a maximum combined storage capacity of 24 TB.
The recorder also features AcuSearch for faster retrieval of relevant video events, together with Hik-Connect for remote live viewing and playback when correctly connected and configured.
Product Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-7216HUHI-M2/XT |
| Product Type | 16-Channel AcuSense Turbo HD DVR |
| Analogue Camera Inputs | 16 BNC Channels |
| Camera Compatibility | HDTVI / AHD / CVI / CVBS / IP |
| Maximum IP Camera Channels | Up to 32, Configuration-Dependent |
| Maximum IP Camera Resolution | 8 MP |
| Intelligent Detection | Motion Detection 2.0 |
| AI Classification | Human and Vehicle Detection |
| Perimeter Protection | Up to 8 Channels (Advanced Model) |
| Facial Recognition | Up to 4 Channels (Advanced Model) |
| AcuSearch | Up to 8 Channels |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Maximum Encoding Resolution | 8 MP |
| Recording Frame Rates | 8 MP at 8 fps / 5 MP at 12 fps / 1080p at 25/30 fps |
| Video Outputs | HDMI (up to 4K) and VGA |
| Storage Interfaces | 2 SATA |
| Maximum HDD Capacity | 12 TB per HDD |
| Maximum Total Storage | 24 TB |
| Network Interface | RJ45 Gigabit Ethernet |
| USB Interfaces | 1 x USB 2.0 (Front); 2 x USB 3.0 (Rear) |
| Remote Viewing | Hik-Connect |
| Two-Way Audio | Supported with Compatible Equipment |
| Housing | 1U DVR |
| Colour | Black |
Key Features
- 16-channel AcuSense Turbo HD DVR
- Supports HDTVI, AHD, CVI, CVBS and IP cameras
- High-resolution recording up to 8 MP
- Motion Detection 2.0 with human and vehicle classification
- Up to 8-channel perimeter protection on advanced models
- Up to 4-channel facial recognition on advanced models
- Up to 8-channel AcuSearch intelligent video searching
- H.265 Pro+ efficient video compression
- Two SATA interfaces supporting up to 24 TB total storage
- 4K HDMI and VGA monitor outputs
- Gigabit Ethernet connectivity
- Hik-Connect remote viewing and playback
- HDTVI two-way audio support with compatible equipment
Applications
Suitable for larger homes, retail premises, offices, restaurants, warehouses, apartment buildings, workshops and commercial properties requiring intelligent multi-camera CCTV surveillance.
Important Compatibility Information
The iDS-7216HUHI-M2/XT is a hybrid Turbo HD DVR, not a PoE NVR. Analogue cameras connect through BNC coaxial inputs, while compatible IP cameras connect through the network. Camera power must be provided separately.
Maximum IP camera capacity, AcuSearch, perimeter protection and facial recognition depend on the recorder's configuration and supported operating mode.
Recording frame rates vary according to resolution and video format. Compatible surveillance hard drives may be sold separately.
