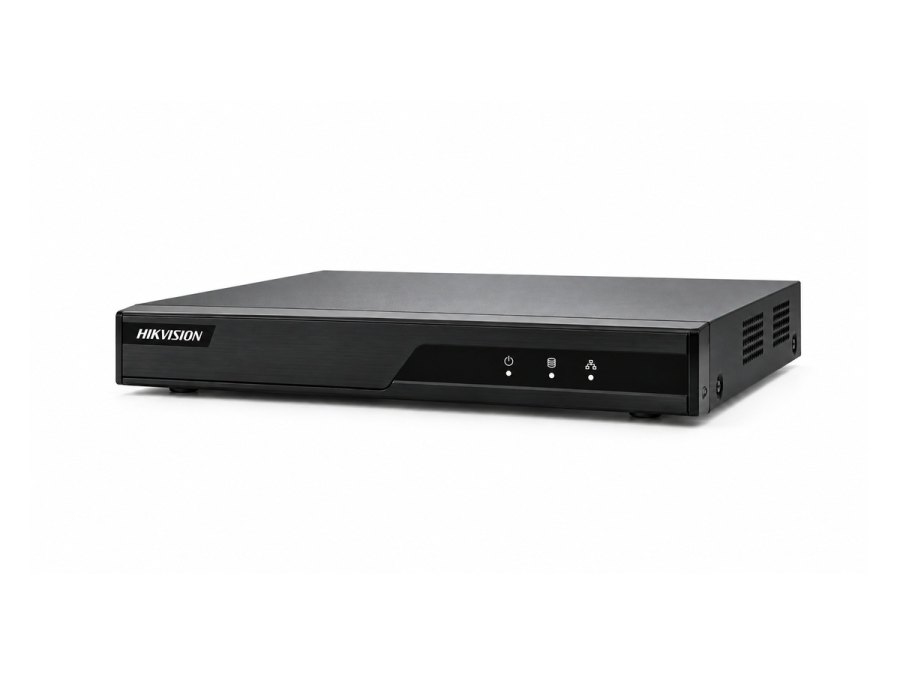

Hikvision iDS-7216HQHI-M1/E 16-Channel AcuSense DVR
The Hikvision iDS-7216HQHI-M1/E is a 16-channel Turbo HD digital video recorder with AcuSense intelligent surveillance technology. Designed for residential, commercial and business CCTV systems, it combines flexible camera compatibility with efficient video recording.
Featuring Motion Detection 2.0, the recorder uses deep-learning technology to classify human and vehicle movement, helping reduce unwanted alerts and simplify video searches. Intelligent perimeter protection is also supported, subject to the selected operating mode.
The DVR supports HDTVI, AHD, CVI, CVBS and compatible IP cameras, making it suitable for both new installations and upgrades to existing coaxial CCTV systems.
H.265 Pro+ compression helps optimise video storage efficiency, while Hik-Connect provides remote live viewing and playback when correctly configured.
Product Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-7216HQHI-M1/E |
| Product Type | 16-Channel AcuSense Turbo HD DVR |
| Analogue Inputs | 16 Channels |
| Camera Compatibility | HDTVI / AHD / CVI / CVBS / IP |
| Maximum IP Channels | Up to 24, configuration-dependent |
| Maximum IP Resolution | 6 MP |
| Intelligent Detection | Motion Detection 2.0 |
| AI Classification | Human and Vehicle |
| Perimeter Protection | Supported |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 |
| Encoding Capability | Up to 1080p at 15 fps |
| Recording Modes | Up to 3K / 5 MP Lite |
| Storage Interface | 1 SATA |
| Maximum HDD Capacity | 10 TB |
| Remote Viewing | Hik-Connect |
| Housing | 1U DVR |
| Colour | Black |
Key Features
- 16-channel AcuSense Turbo HD recorder
- Motion Detection 2.0 on analogue channels
- Intelligent human and vehicle classification
- Deep-learning perimeter protection
- Supports analogue and compatible IP cameras
- Up to 24 IP channels in supported configurations
- H.265 Pro+ efficient video compression
- Single SATA interface supporting up to 10 TB
- Hik-Connect remote viewing and playback
Applications
Suitable for larger homes, offices, retail premises, restaurants, warehouses, apartment buildings and other properties requiring multi-camera surveillance.
Important Compatibility Information
This is a hybrid Turbo HD DVR, not a PoE NVR. Analogue cameras use coaxial BNC connections, while compatible IP cameras connect through the network. Camera power is supplied separately.
Maximum IP camera capacity and intelligent functions depend on configuration. A compatible surveillance hard drive may be sold separately.
