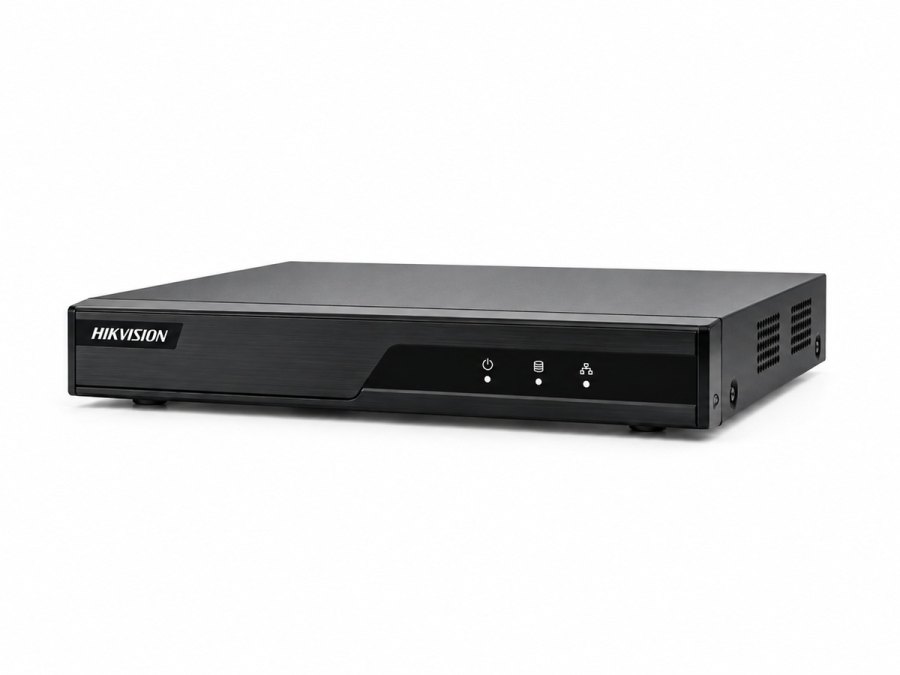

Hikvision iDS-7208HUHI-M1/E 8-Channel AcuSense DVR
The Hikvision iDS-7208HUHI-M1/E is an 8-channel Turbo HD digital video recorder featuring Hikvision AcuSense technology and support for high-resolution CCTV cameras. It provides intelligent surveillance and flexible camera connectivity for residential and commercial security installations.
With Motion Detection 2.0, the recorder uses deep-learning technology to classify people and vehicles, helping reduce unwanted alerts caused by other moving objects. It also supports intelligent perimeter protection and facial detection, depending on the selected operating mode.
The DVR supports HDTVI, AHD, CVI, CVBS and compatible IP cameras. It accepts HDTVI video inputs up to 8 MP, making it suitable for upgrading existing coaxial CCTV systems to higher-resolution surveillance.
H.265 Pro+ compression helps reduce storage requirements, while Hik-Connect enables remote live viewing and playback when the recorder is correctly connected and configured.
Product Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-7208HUHI-M1/E |
| Product Type | 8-Channel AcuSense Turbo HD DVR |
| Analogue Camera Inputs | 8 BNC Channels |
| Camera Compatibility | HDTVI / AHD / CVI / CVBS / IP |
| Maximum HDTVI Input | 8 MP |
| IP Camera Support | 4 IP Channels by Default; Up to 12 Total, or 16 in Enhanced IP Mode |
| Maximum IP Camera Resolution | 8 MP |
| Motion Detection | Motion Detection 2.0 |
| AI Classification | Human and Vehicle Detection |
| Perimeter Protection | Up to 4 Channels |
| Facial Detection | Supported |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Maximum Recording | 8 MP at 8 fps / 5 MP at 12 fps |
| Monitor Outputs | HDMI (up to 4K) and VGA |
| Storage Interface | 1 SATA |
| Maximum HDD Capacity | 10 TB |
| Network Interface | RJ45 Gigabit Ethernet |
| USB Ports | 2 × USB 2.0 |
| Remote Viewing | Hik-Connect |
| Power Supply | 12 V DC, 2 A |
| Dimensions (W × D × H) | 265 × 225 × 48 mm |
| Colour | Black |
Key Features
- 8-channel AcuSense Turbo HD DVR
- Supports high-resolution HDTVI cameras up to 8 MP
- Human and vehicle classification
- Motion Detection 2.0 on all analogue channels
- Up to 4-channel intelligent perimeter protection
- Facial detection and capture support
- Hybrid analogue and IP camera compatibility
- H.265 Pro+ efficient video compression
- HDMI 4K and VGA monitor outputs
- Hik-Connect remote viewing
- Single SATA interface supporting up to 10 TB
- Compact 1U recorder housing
Applications
Suitable for homes, offices, retail shops, restaurants, warehouses, apartment buildings and other properties requiring reliable multi-camera, high-resolution CCTV surveillance.
Important Compatibility Information
The iDS-7208HUHI-M1/E is a hybrid Turbo HD DVR, not a PoE NVR. Analogue cameras connect through BNC coaxial inputs, while compatible IP cameras connect through the network. Camera power must be provided separately.
Recording frame rates depend on resolution and configuration. Motion Detection 2.0 and perimeter protection cannot operate simultaneously. Enhanced IP mode may affect intelligent detection features. A compatible surveillance hard drive may be sold separately.
