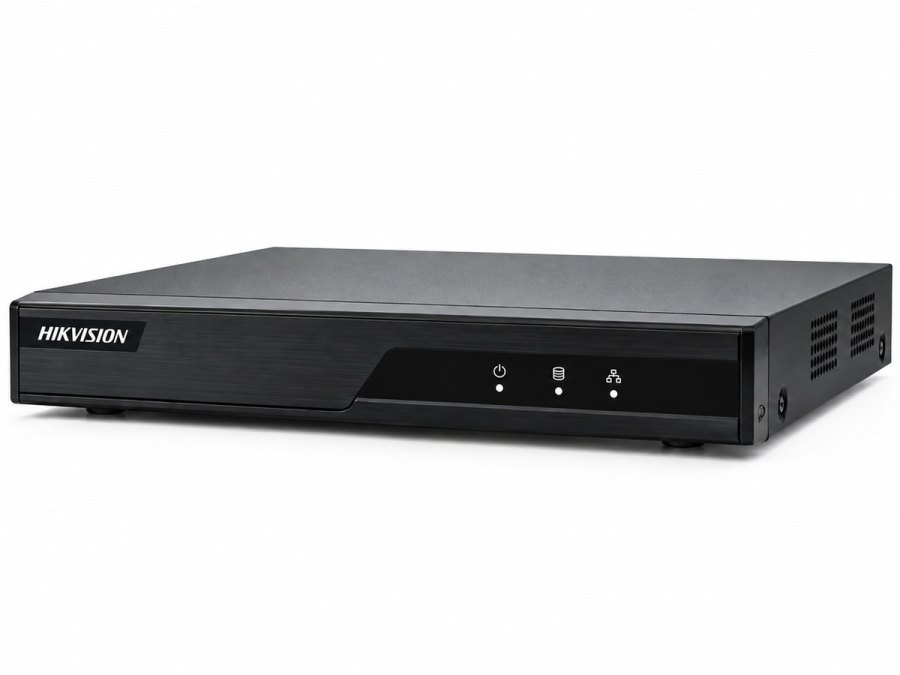

Hikvision iDS-7204HUHI-M1/E 4-Channel 5 MP AcuSense DVR
The Hikvision iDS-7204HUHI-M1/E is a 4-channel Turbo HD digital video recorder featuring Hikvision AcuSense technology and support for high-resolution CCTV cameras. It is designed for dependable video surveillance in residential and commercial properties.
With intelligent Motion Detection 2.0, the DVR uses deep-learning technology to distinguish people and vehicles from other moving objects, helping reduce unwanted motion alerts and making security footage easier to review.
The recorder supports HDTVI, AHD, CVI, CVBS and compatible IP cameras, offering flexibility when installing new CCTV systems or upgrading existing analogue surveillance equipment.
Support for high-resolution camera inputs and H.265 Pro+ video compression provides a practical balance between image detail and storage efficiency. Remote viewing is available through Hik-Connect when the recorder is connected and correctly configured.
Product Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-7204HUHI-M1/E |
| Product Type | 4-Channel AcuSense Turbo HD DVR |
| Analogue Camera Inputs | 4 BNC Channels |
| Camera Compatibility | HDTVI / AHD / CVI / CVBS / IP |
| HDTVI Input Resolution | Up to 8 MP |
| IP Camera Support | 2 Channels by Default; Up to 8 Total in Enhanced IP Mode |
| Maximum IP Camera Resolution | 8 MP |
| Intelligent Detection | Motion Detection 2.0 |
| AI Classification | Human and Vehicle |
| Perimeter Protection | Supported |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 |
| Video Outputs | HDMI and VGA |
| Storage Interface | 1 SATA |
| Maximum HDD Capacity | 10 TB |
| Network Interface | RJ45 10/100 Mbps Ethernet |
| Remote Viewing | Hik-Connect |
| Power Supply | 12 V DC, 1.5 A |
| Dimensions (W × D × H) | 265 × 225 × 48 mm |
| Colour | Black |
Key Features
- 4-channel AcuSense Turbo HD DVR
- Supports HDTVI camera inputs up to 8 MP
- Intelligent human and vehicle classification
- Motion Detection 2.0
- Deep-learning perimeter protection
- Supports analogue and compatible IP cameras
- H.265 Pro+ efficient video compression
- HDMI and VGA video outputs
- Hik-Connect remote viewing
- Single SATA interface supporting up to 10 TB
- Compact 1U housing
Applications
Suitable for homes, retail shops, offices, restaurants, small businesses and other properties requiring intelligent high-resolution CCTV recording.
Important Compatibility Information
The iDS-7204HUHI-M1/E is a hybrid Turbo HD DVR, not a PoE NVR. Analogue cameras connect through BNC coaxial inputs, while compatible IP cameras connect through the network. Camera power must be supplied separately.
Recording resolution and frame rate depend on camera format and configuration. Enhanced IP mode may affect intelligent event functions. A compatible surveillance hard drive may be sold separately.
