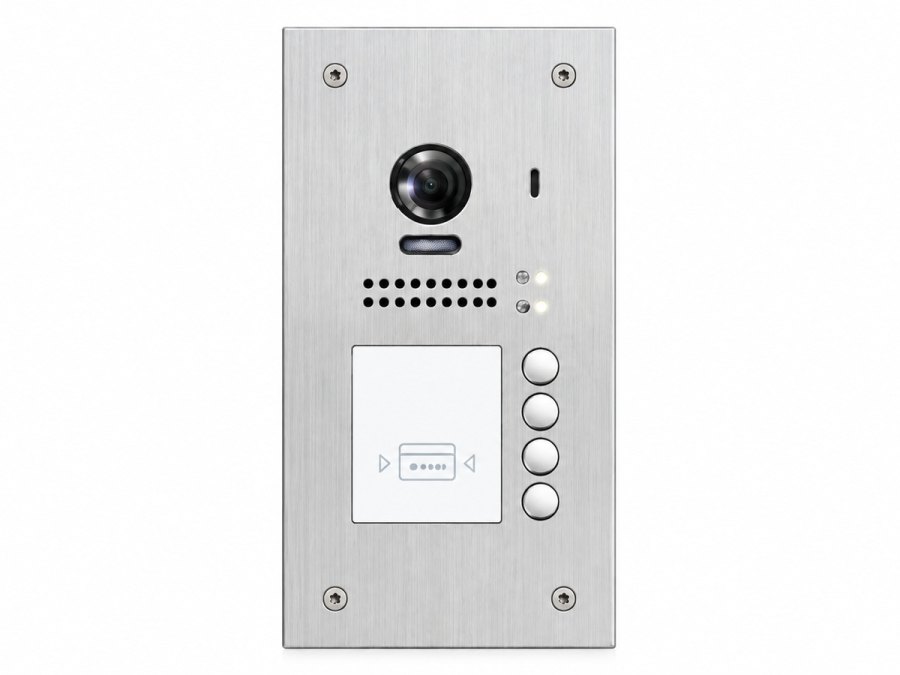

VTEC DT607F/ID/FE/S4 2-Wire Video Door Entry Panel
The VTEC DT607F/ID/FE/S4 is a premium stainless steel outdoor video door entry station designed for compatible VTEC 2-wire video intercom systems. Featuring four individual call buttons, a wide-angle colour camera and integrated RFID proximity access control, it provides a stylish and practical entrance solution for residential and commercial properties.
The integrated 170° fisheye camera provides a wide field of view, allowing occupants to identify visitors through a compatible indoor video monitor. Automatic illumination assists visibility in low-light conditions.
Its brushed stainless steel front panel and flush-mounted design provide a professional, discreet appearance. The built-in RFID reader enables authorised users to gain access using compatible proximity cards or key fobs.
Product Specifications
| Model | DT607F/ID/FE/S4 |
|---|---|
| System | VTEC 2-Wire Video Intercom |
| Type | Outdoor Video Door Station |
| Call Buttons | 4 Individual Buttons |
| Camera | Colour CMOS Fisheye Camera |
| Viewing Angle | 170° Wide Angle |
| Access Control | Integrated RFID Proximity Reader |
| RFID Frequency | 125kHz |
| Power Supply | 24V DC |
| Wiring | 2-Wire, Non-Polarised |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Front Panel | Brushed Stainless Steel |
| Mounting | Flush Mounted |
| Dimensions | 220(H) x 119(W) x 52(D) mm |
Key Features
- Compatible with supported VTEC 2-wire systems
- Four individual call buttons
- 170° wide-angle colour fisheye camera
- Integrated 125kHz RFID proximity card reader
- Two-way audio communication
- Automatic low-light illumination
- Door lock release functionality
- Durable brushed stainless steel front panel
- IP54 weather-resistant protection
- Flush-mounted installation
- Simple non-polarised 2-wire connection
Applications
The VTEC DT607F/ID/FE/S4 is ideal for apartment buildings, residential complexes, offices and multi-occupancy properties requiring reliable video communication and controlled visitor access.
Combining video monitoring, two-way audio and proximity access control in one elegant outdoor panel, the DT607F provides a convenient entrance management solution.
