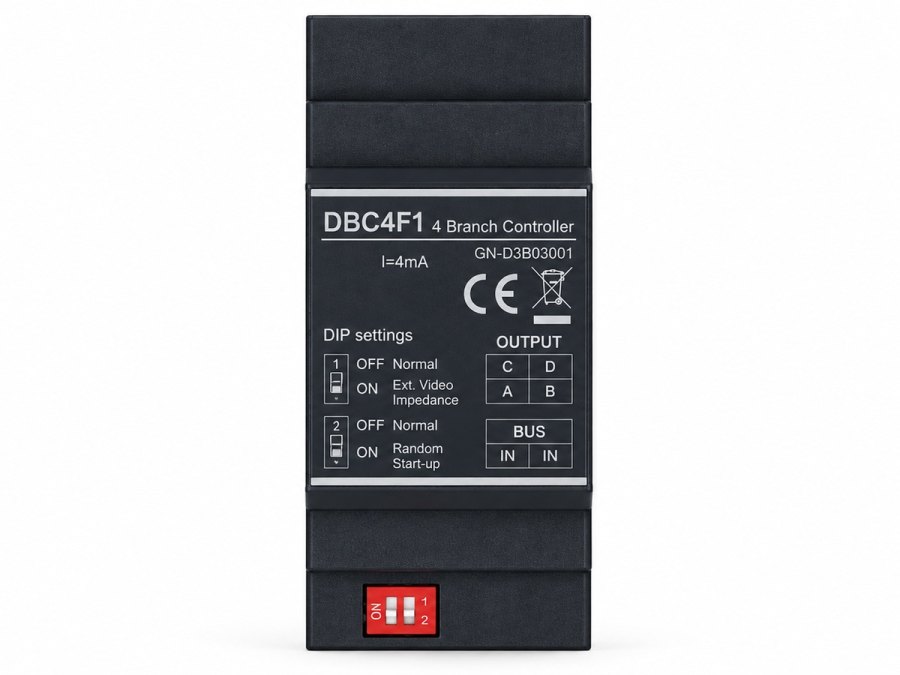

VTEC DT-DBC4F1 4-Way Distributor Module
The VTEC DT-DBC4F1 4-Way Distributor Module is designed for compatible VTEC 2-wire video intercom and door entry systems. It allows the main system BUS to be distributed across four separate branches, providing a practical solution for installations requiring multiple connected devices.
Featuring four individual outputs, the DT-DBC4F1 simplifies system wiring and distribution in residential and commercial video intercom installations.
The module incorporates configurable DIP switches for video impedance and start-up settings, allowing installers to adjust operation according to system requirements. Its compact enclosed design makes it suitable for installation within compatible intercom distribution systems.
Product Specifications
| Model | DT-DBC4F1 |
|---|---|
| Product Type | 4-Way Distributor / Branch Controller |
| System Compatibility | Compatible VTEC 2-Wire Systems |
| Number of Outputs | 4 |
| Output Connections | A / B / C / D |
| Input Connection | 2-Wire BUS |
| Configuration | DIP Switch Settings |
| Video Impedance | Normal / Extended Impedance Setting |
| Start-Up Mode | Normal / Random Start-Up |
| Enclosure | Compact Plastic Housing |
Key Features
- Designed for compatible VTEC 2-wire systems
- Four separate BUS output branches
- Dedicated BUS input connection
- Configurable video impedance settings
- Normal and random start-up configuration
- Integrated DIP switches for installation setup
- Compact enclosed design
- Simplifies multi-device intercom wiring
- Suitable for residential and commercial systems
Applications
The VTEC DT-DBC4F1 is suitable for use in apartment buildings, residential complexes, offices and multi-occupancy properties where a compatible 2-wire video intercom system requires distribution across multiple branches.
Its four-way distribution capability makes it a useful component for organising and expanding compatible VTEC video door entry installations.
