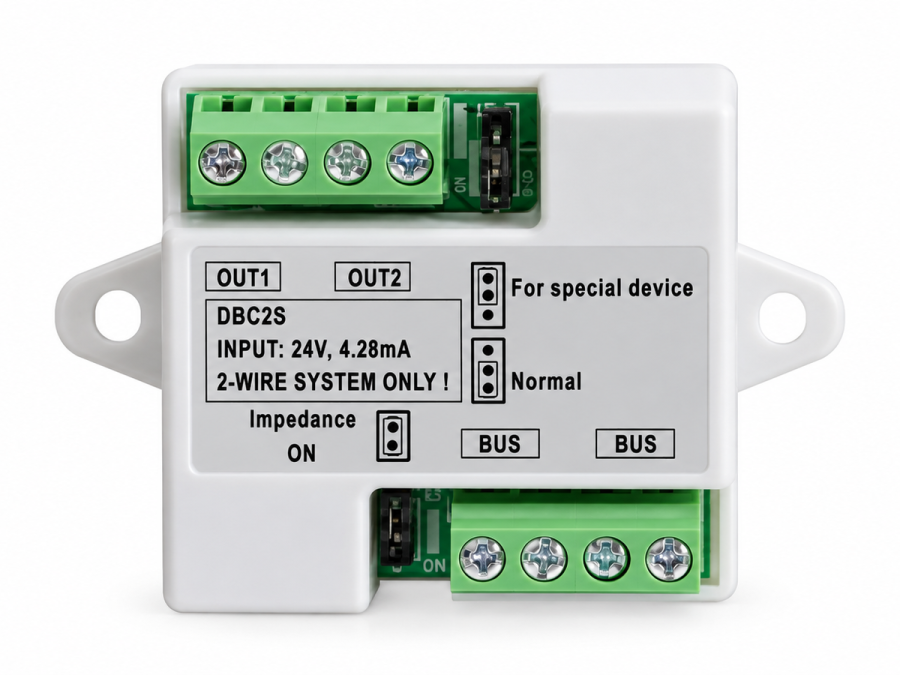

VTEC DBC2S 2-Way Distributor Module
The VTEC DBC2S 2-Way Distributor Module is designed for use with compatible VTEC 2-wire video intercom and door entry systems. It provides a convenient way to distribute the system BUS connection into two separate branches, allowing compatible devices to be connected within a structured intercom installation.
Featuring two individual output connections, the DBC2S simplifies system wiring and distribution for residential and commercial video intercom installations.
The module includes configurable impedance settings and connection options for normal or special devices, allowing installers to configure the distributor according to the requirements of the connected equipment.
Its compact housing, screw terminal connections and integrated mounting points make the DBC2S a practical solution for distributing 2-wire BUS connections.
Product Specifications
| Model | DBC2S |
|---|---|
| Product Type | 2-Way Distributor Module |
| System Compatibility | Compatible VTEC 2-Wire Systems |
| Number of Outputs | 2 |
| System Voltage | 24V DC BUS |
| Connections | Screw Terminal Connectors |
| Output Terminals | OUT1 / OUT2 |
| BUS Connections | 2-Wire BUS |
| Impedance Setting | Configurable |
| Device Selection | Normal / Special Device |
| Mounting | Screw Mounting |
| Housing | Compact Plastic Enclosure |
Key Features
- Designed for compatible VTEC 2-wire systems
- Distributes the BUS connection into two branches
- Two independent output terminals
- Compact and lightweight design
- Convenient screw terminal connections
- Configurable impedance settings
- Normal and special device configuration
- Integrated mounting points
- Simplifies 2-wire intercom system wiring
- Suitable for residential and commercial installations
Applications
The VTEC DBC2S is suitable for use in apartment buildings, residential complexes, office buildings and multi-occupancy properties where a compatible 2-wire intercom BUS needs to be distributed between multiple devices or installation branches.
Its two-way distribution design makes it a useful component for organizing and extending compatible video intercom installations.
