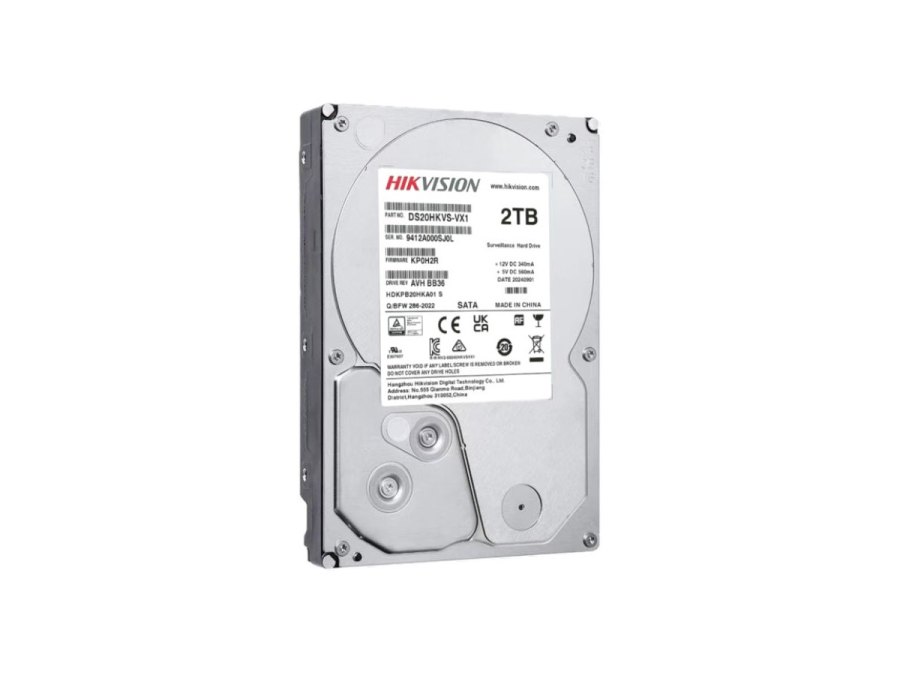

Hikvision DS20HKVS-VX1 2TB Surveillance Hard Drive
The Hikvision DS20HKVS-VX1 is a 2TB surveillance hard disk drive designed for reliable, continuous video recording in compatible CCTV DVR and NVR systems.
Built for demanding security applications, this 3.5-inch hard drive is designed for 24/7 surveillance operation. Its 2TB storage capacity provides space for recorded footage from multiple security cameras, making it suitable for residential and commercial CCTV installations.
Featuring a SATA III 6 Gb/s interface, 5400 RPM rotational speed and 128MB cache, the DS20HKVS-VX1 is optimised for continuous surveillance recording.
With a rated annual workload of 180TB per year and support for up to 32 HD video streams, this hard drive is designed to handle the recording demands of compatible multi-camera surveillance systems.
Technical Specifications
| Brand | Hikvision |
|---|---|
| Model | DS20HKVS-VX1 |
| Product Type | Surveillance HDD |
| Capacity | 2TB |
| Form Factor | 3.5 Inch |
| Interface | SATA III 6 Gb/s |
| Rotational Speed | 5400 RPM |
| Cache | 128MB |
| Operation | 24/7 Surveillance Recording |
| Annual Workload Rating | 180TB/Year |
| Video Streams | Up to 32 HD Streams |
| Dimensions (L x W x H) | 147 x 101.6 x 26.1 mm |
| Compatibility | Compatible SATA DVR and NVR Systems |
Key Features
- 2TB surveillance storage capacity
- Designed for continuous 24/7 CCTV recording
- 3.5-inch SATA hard drive
- SATA III 6 Gb/s interface
- 5400 RPM rotational speed
- 128MB cache memory
- 180TB annual workload rating
- Supports up to 32 HD video streams
- Suitable for compatible DVR and NVR systems
Applications
Ideal for CCTV surveillance systems in homes, shops, offices, warehouses, restaurants, apartment buildings and commercial premises.
Compatibility Information
The Hikvision DS20HKVS-VX1 is designed for compatible CCTV recorders with a 3.5-inch SATA hard drive bay. Before installation, confirm that the recorder supports 2TB HDDs and has sufficient physical space.
Actual recording duration depends on the number of cameras, recording resolution, frame rate, compression settings and recording schedule.
