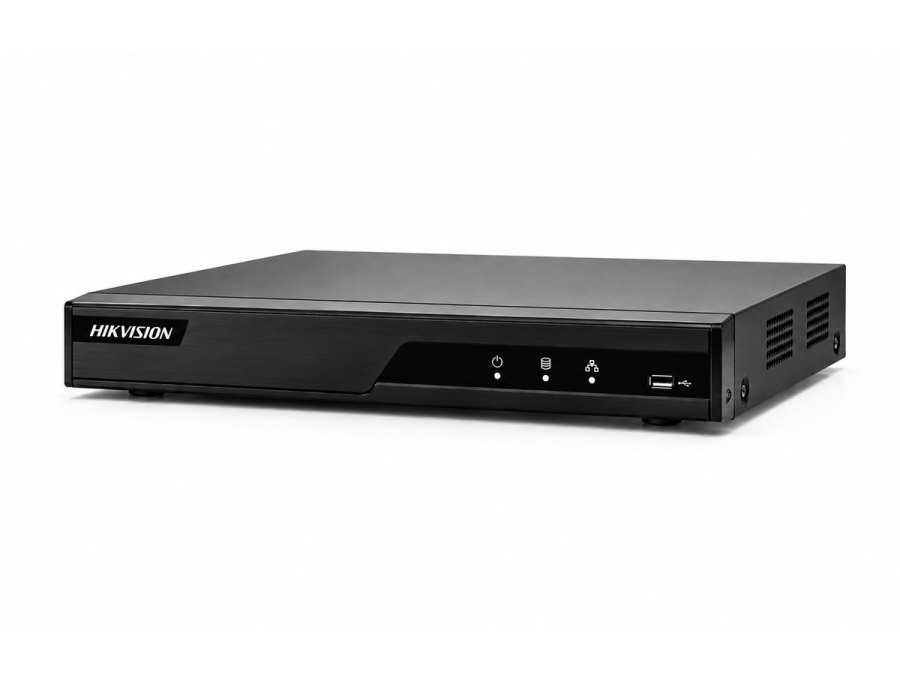

Hikvision DS-7608NXI-K1/8P(D) 8-Channel AcuSense PoE NVR
The Hikvision DS-7608NXI-K1/8P(D) is an 8-channel AcuSense 4K network video recorder featuring eight built-in Power over Ethernet (PoE) ports, intelligent video analytics and high-resolution IP camera recording.
Designed for homes, offices, shops and commercial CCTV installations, this recorder supports up to eight compatible IP cameras. Its integrated PoE ports provide network connectivity and electrical power to compatible cameras through a single Ethernet cable, helping simplify installation and reduce cabling requirements.
Featuring Hikvision AcuSense technology, the NVR supports intelligent human and vehicle recognition to help reduce false alarms. Smart search and playback features make it easier to locate important security events in recorded footage.
The recorder supports IP camera recording resolutions up to 12 MP and uses H.265+ video compression to help reduce storage requirements while maintaining high-quality surveillance footage.
HDMI output supports resolutions up to 4K, with an additional VGA connection for compatible monitors. The NVR also supports up to eight-channel synchronous playback.
One SATA interface supports a surveillance hard drive with a capacity of up to 16 TB. Hik-Connect provides remote live viewing and playback when the NVR is correctly configured and connected to the network.
Product Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7608NXI-K1/8P(D) |
| Product Type | 8-Channel AcuSense 4K PoE NVR |
| IP Camera Inputs | 8 Channels |
| Built-in PoE Ports | 8 x RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Power Budget | Up to 75 W |
| Maximum Recording Resolution | 12 MP |
| Incoming Bandwidth | 80 Mbps |
| AI Technology | Hikvision AcuSense |
| Smart Analysis | Human and Vehicle Recognition |
| NVR-Side Smart Analysis | 1 Channel |
| Facial Recognition | Supported, Mode-Dependent |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video Outputs | 4K HDMI and VGA |
| Synchronous Playback | 8 Channels |
| Storage Interface | 1 SATA |
| Maximum HDD Capacity | 16 TB |
| Network Interface | 1 x RJ45 Ethernet |
| USB Ports | 2 x USB 2.0 (Front and Rear) |
| Remote Viewing | Hik-Connect |
| Power Supply | 48 V DC, 1.875 A |
| Power Consumption | Up to 10 W, Excluding HDD and PoE |
| Dimensions (W x D x H) | 320 x 240 x 48 mm |
| Weight | Up to 1 kg Without HDD |
| Operating Temperature | -10°C to +55°C |
| Colour | Black |
Key Features
- 8-channel AcuSense IP network video recorder
- 8 built-in PoE ports for compatible IP cameras
- Up to 75 W total PoE power budget
- Supports IP camera recording up to 12 MP
- Human and vehicle recognition
- Smart search and intelligent playback
- Facial recognition support
- H.265+ efficient video compression
- 4K HDMI and VGA display outputs
- 8-channel synchronous playback
- Single SATA interface supporting up to 16 TB
- Hik-Connect remote viewing and playback
- Compact 1U design
Applications
Ideal for residential properties, retail shops, offices, restaurants, apartment buildings, reception areas, workshops, small warehouses and commercial premises requiring reliable multi-camera IP surveillance.
Compatibility Information
The DS-7608NXI-K1/8P(D) is an IP network video recorder and does not include analogue BNC camera inputs. It is designed for compatible IP network cameras.
The eight integrated PoE ports support IEEE 802.3af/at. The combined power requirements of connected cameras must remain within the 75 W total PoE budget.
Recording performance, decoding capacity and intelligent detection features depend on camera resolution, frame rate, bitrate and operating configuration. A compatible surveillance hard drive may be sold separately.
