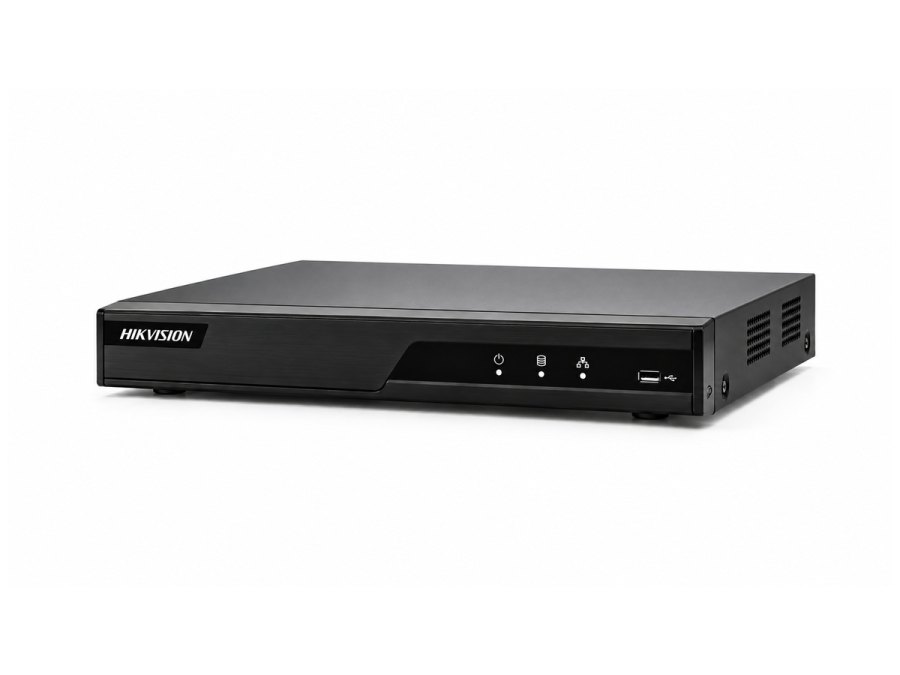

Hikvision DS-7604NXI-K1/4P(D) 4-Channel AcuSense PoE NVR
The Hikvision DS-7604NXI-K1/4P(D) is a compact 4-channel AcuSense 4K network video recorder featuring four built-in Power over Ethernet (PoE) ports, intelligent video analytics and high-resolution IP camera recording.
Designed for homes, offices, shops and small commercial CCTV systems, the NVR supports up to four compatible IP cameras. Its integrated PoE ports provide network connectivity and electrical power to supported cameras through a single Ethernet cable, simplifying installation and reducing cabling.
Featuring Hikvision AcuSense technology, the recorder supports intelligent human and vehicle classification through Motion Detection 2.0. This helps reduce unwanted alerts from irrelevant movement and makes security footage easier to review.
The NVR supports IP camera recording resolutions up to 12 MP, together with H.265+ video compression to help optimise storage efficiency. HDMI output supports resolutions up to 4K for clear viewing on compatible monitors.
One SATA hard-drive interface supports a surveillance HDD with a capacity of up to 16 TB, providing flexible storage for continuous or event-based recording.
With Hik-Connect, users can remotely view live camera feeds and recorded footage through compatible mobile devices when the NVR is connected and correctly configured.
Product Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7604NXI-K1/4P(D) |
| Product Type | 4-Channel AcuSense 4K PoE NVR |
| IP Camera Inputs | 4 Channels |
| Built-in PoE Ports | 4 x RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Power Budget | 50 W |
| Maximum Recording Resolution | 12 MP |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Intelligent Detection | Motion Detection 2.0 |
| AI Classification | Human and Vehicle |
| Facial Recognition | Supported, Mode-Dependent |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video Outputs | HDMI (Up to 4K) and VGA |
| Synchronous Playback | 4 Channels |
| Storage Interface | 1 SATA |
| Maximum HDD Capacity | 16 TB |
| Network Interface | 1 x Gigabit Ethernet RJ45 |
| USB Ports | 2 x USB 2.0 (Front and Rear) |
| Remote Viewing | Hik-Connect |
| Power Supply | 48 V DC, 1.35 A |
| Power Consumption | Up to 10 W, Excluding HDD and PoE |
| Dimensions (W x D x H) | 320 x 240 x 48 mm |
| Weight | Up to 1 kg Without HDD |
| Operating Temperature | -10°C to +55°C |
| Colour | Black |
Key Features
- 4-channel AcuSense IP network video recorder
- 4 built-in PoE ports for compatible IP cameras
- 50 W total PoE power budget
- Supports recording resolutions up to 12 MP
- Motion Detection 2.0 with human and vehicle classification
- Facial recognition support
- H.265+ efficient video compression
- 4K HDMI and VGA display outputs
- Single SATA interface supporting up to 16 TB
- Gigabit Ethernet network connection
- Hik-Connect remote viewing and playback
- Compact 1U design
Applications
Ideal for homes, apartments, retail shops, offices, restaurants, reception areas, small warehouses and other properties requiring a compact four-camera IP surveillance system.
Compatibility Information
The DS-7604NXI-K1/4P(D) is an IP network video recorder, not an analogue DVR. It does not include BNC camera inputs. Compatible IP cameras connect through the integrated PoE ports or the network.
The built-in PoE ports support IEEE 802.3af/at. The combined power requirements of connected cameras must remain within the 50 W PoE budget. Cameras requiring additional power may need a separate power supply or PoE solution.
Recording and decoding performance depend on camera resolution, frame rate, bitrate and intelligent detection configuration. A compatible surveillance hard drive may be sold separately.
